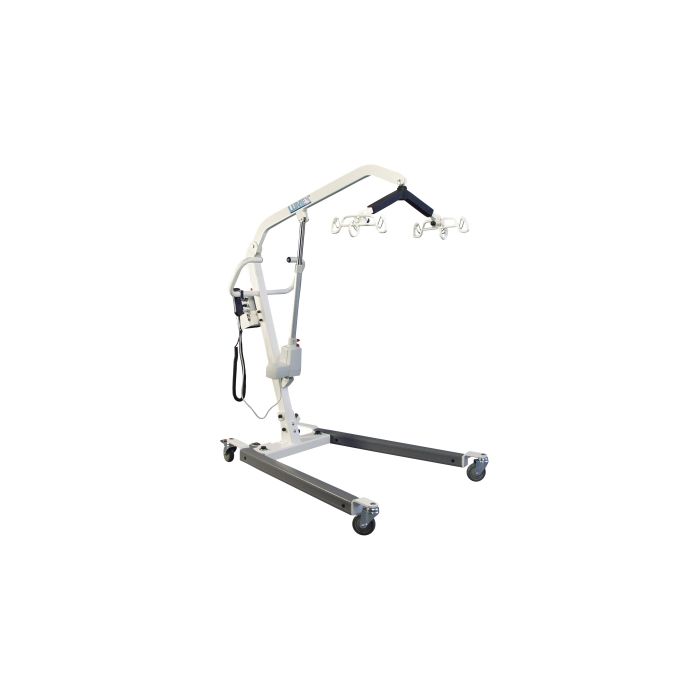

Lumex Easy Lift Patient Lifting System - Bariatric

  • 49592
  • LF1090
  • Graham-Field

Availability: Leaves USA Warehouse In: 5-7 days

Customize & Buy

Customize & Buy

CAD $4,338.00



Lumex Bariatric Lift, constructed of heavy-gauge steel, offers a 600 lbs lifting capacity. Transfers from bed to commode or wheelchair are made easy with this powered lift. The six-point spreader bar has 360 degrees rotation and provides good separation of sling straps for maximum patient comfort and eliminates patient pinching. This lift allows you to use two, four, or six point slings.

The power patient lifter has a low base height of 5.75" and clears hospital beds and most homecare beds. Rechargeable battery and actuator motor combination provide easy lifting and lowering with the push of a button.


  • Able to lift patient from floor
  • Uses six-point, four-point slings or 2-point slings
  • Large, easy to grip handles for easy maneuvering
  • Lower base height maximizes stability and fits under most beds
  • Rubber base coating protects furniture and walls
  • 24V DC motor allows quiet smooth operation
  • Ergonomically designed hand pendant with pendant hook
  • Warning beep for low battery charge and weight capacity levels
  • Easy access emergency stop button
  • Emergency manual lowering device
  • Maximum weight capacity of 600 lbs
  • White powder-coated finish won't scratch or corrode
  • Accessory/storage bag included for slings and charger
  • Optional digital scale available

Attention California residents: This product may contain a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.


Product Specifications

Weight Capacity 600 lbs.
Product Weight 137 lbs.
Lifts Patient From Floor Yes
Max Lifting Range 71"
Min Lifting Range 27"
Base Width (Open) 43"
Base Width (Closed) 26.2"
Base Length 50"
Base Height 5.8"
Front Wheel Size 3"
Rear Wheel Size 4"
Warranty on Frame One Year Limited
Warranty on Wearable Parts One Year Limited
