Invacare Top End Excelerator Handcycle

  • 44664
  • XCL
  • Invacare

Availability: Leaves USA Warehouse in: 6-8 weeks

Customize & Buy

Customize & Buy

Please select another option
Learn More

It's important for the wheelchair to be fitted properly and be as narrow as possible while maintaining comfort and safety.

This will insure the best performance for navigating tight areas both inside the home as well out in public spaces.

A wheelchair that is too narrow or too wide can cause discomfort. When too narrow, a wheelchair can become restrictive and increase the likelihood of pressure sores, while when it's too wide, becomes more difficult to push due to the angle of the arms from the shoulders to the wheels.

To determine the necessary seat width, measure the rider's widest area of the body and add one inch. This will allow for optimum seat width while maintaining ideal usability, comfort and safety.

Please select another option
Please select another option
Please select another option
Please select another option
Please select another option
Please select another option
Please select another option
Please select another option
Please select another option


CAD $5,923.00
As low as /mo
Check my rate


Quick Overview

  • Carbon steel frame
  • Adjustable sliding seat
  • Comes standard with seat cushion, chain guard, safety flag, and hook and loop seat restraint

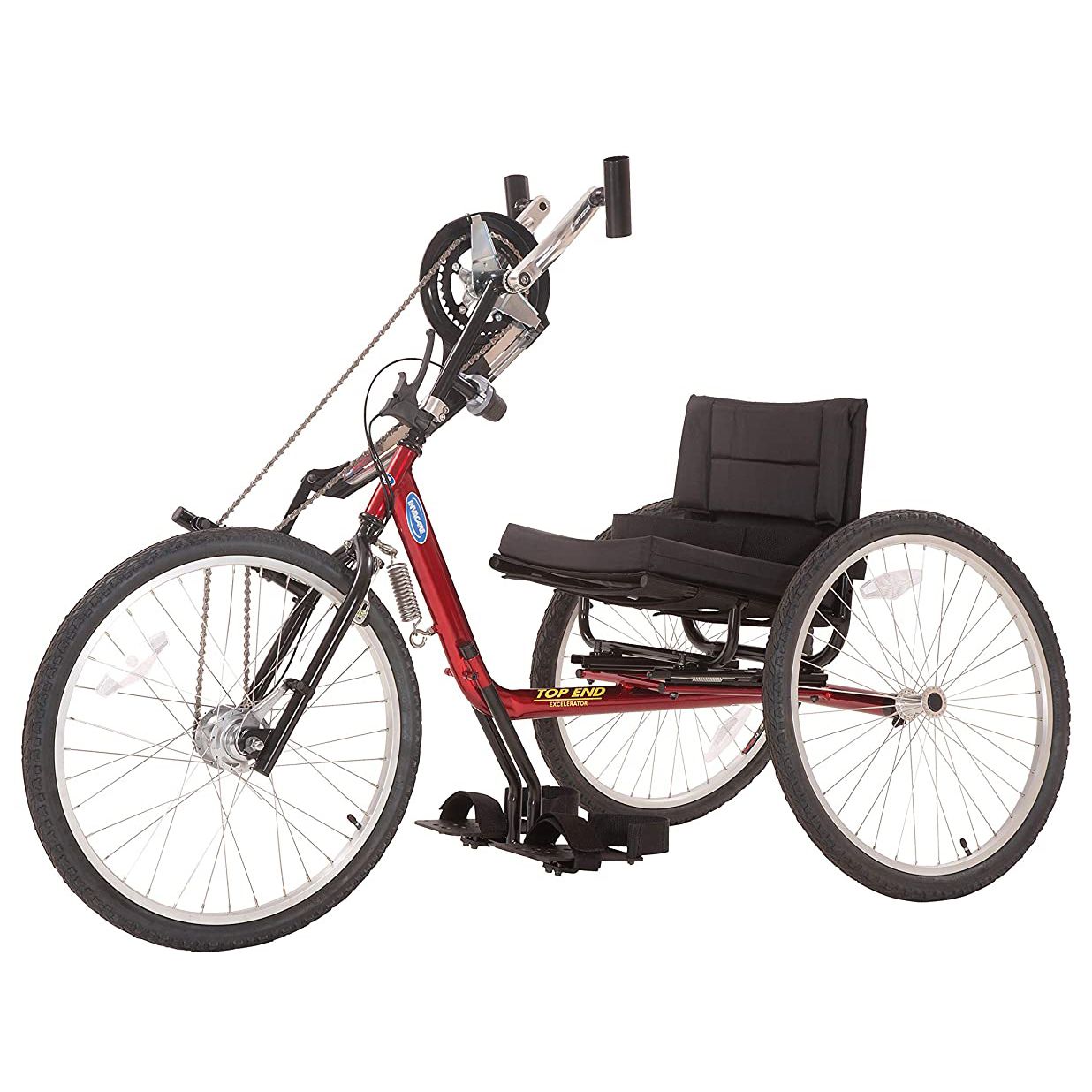

If you want a great way to exercise, cross-train or just have fun, the Invacare Top End Excelerator handcycle is what you need.

This extremely stable and maneuverable upright three-wheel handcycle is capable of speeds up to 15 mph. The smooth Shimano shifter lets you tackle hills or level terrain with equal ease. The 7-speed Shimano hub, with reverse braking, means your hands never have to leave the handles to stop or fumble to find a neutral zone back-up. And, with the fully adjustable chain tension idler, there is no need to add or remove chain links with crank height adjustments.


  • 1.75" x 0.65" ovalized carbon steel frame tubing
  • 9 degrees Camber Angle
  • 90 degrees Back Angle
  • 20" Seat To Floor Height with 2" cushion (included)
  • Carbon steel oval tube upright frame with powder coat paint and 350 pound weight capacity
  • Adjustable tension seat upholstery, adjustable back height, adjustable fore and aft sliding seat, adjustable height/angle dual footrests
  • Chain guard, parking brake, safety foot straps, Shimano 7-speed Nexus hub, reversing drum brake, easy-to-reach 7-speed shifter
  • Cushion, 24" performance spoked wheels with cruiser tires
  • Vertical ergonomic hand pedals, adjustable crank height, adjustable chain tension idler
  • Adjustable Height and Angle Footplates with safety straps
  • Easy to adjust sliding seat makes transfers in and out of the handcycle more functional
  • Footrests are fully adjustable in height and angle, with safety straps to secure the feet
  • Standard cruiser tires are tractor grip 24 x 1.75" 40 psi
  • Free Shipping


Product Specifications

Weight Capacity350 lbs.
Product Weight50 lbs.
Seat Width14" - 20"
Seat Depth15"
Seat-to-Floor Height20"
Overall Length65"
Frame ColorBlack - Yellow
Front Wheel Size 24"
Rear Wheel Size24"
Axle TypeQuick Release
Back Height14" - 18"
Upholstery TypeNylon
Upholstery ColorBlack
Warranty on Frame Three Year Limited
Warranty on Wearable PartsOne Year Limited
Shipping Weight55 lbs.
Box Length48"
Box Width36"
Box Height34"
Weight50 lbs.
Front Seat-to-Floor Height20″
Rear Seat-to-Floor Height18″
Wheel Size24″
Back WidthSame as seat width.
Frame Tubing1 3/4″ x .065 ovalized carbon steel tubing
Camber Angle
Back Angle90°
Turning Radius12' for 360 degree circle. 8' w/one back-up maneuver.
WarrantyThree year warranty on frame. One year limited warranty on parts.
