Top End Li'l Excelerator Handcycle

  • 44670
  • Top End
  • LXC
0.00 star rating 0 reviews

Availability: Leaves USA Warehouse in: 6-8 weeks

Leaves USA Warehouse in: 6-8 weeks

FREE shipping

Chat live with a product specialist

Customize and buy

Please select another option
Please select another option
Please select another option
Please select another option

Accessories

Total:
CAD $5,525.00
-
+
Back

Details

Quick Overview

  • Carbon-Steel Frame and Fork
  • Comes standard with chain guard, seat cushion, safety flag, seat restraint (hook and loop)
  • Shipped completely assembled except for rear wheels

Description

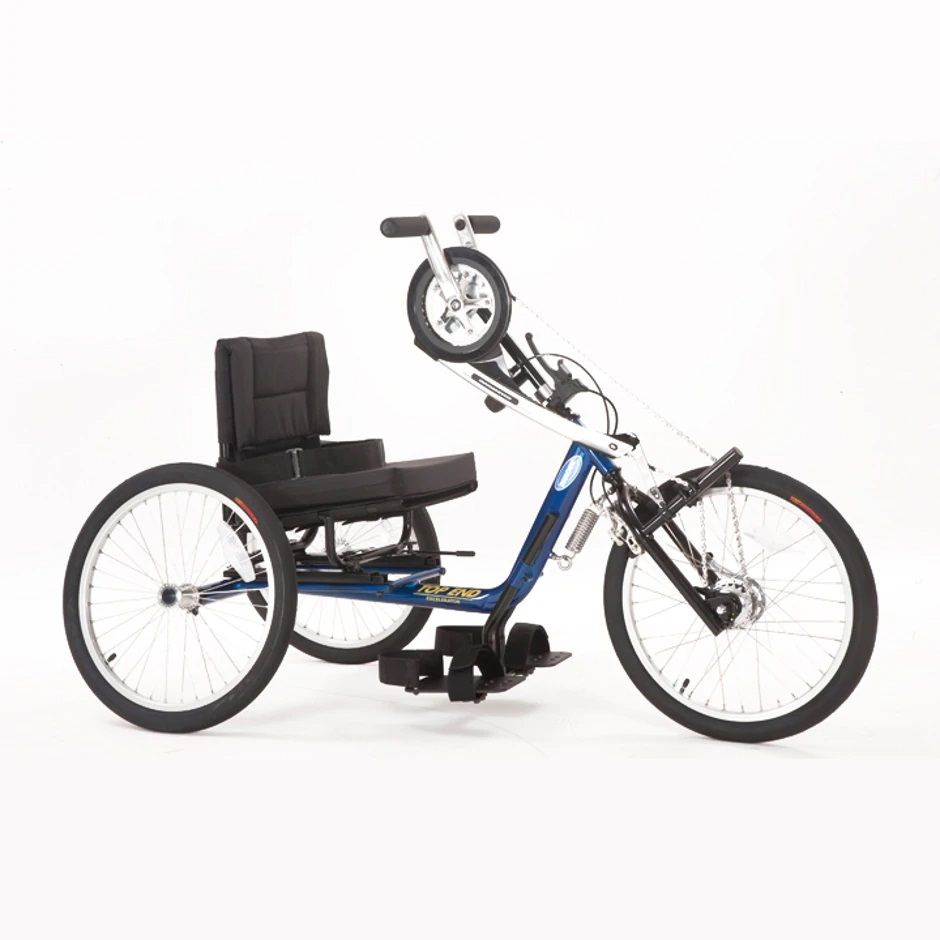

Designed for maximum stability and maneuverability, the Invacare Top End Li'l Excelerator Handcycle is a three-wheel pediatric chair that is safe for even the first-time cyclist.

The Shimano 7-speed hub with reversing drum brake means your child's hands are always at the controls, and the carbon-steel frame and adjustable footrest and crank-height provide durability and comfort for most children between 3.5' and 5'.

Kid-sized and safe, the Li'l Excelerator is a great way for your child to tag along on a day of bicycling adventure.

Features

  • 1.75" x .065 ovalized carbon steel tubing
  • Shimano 7-speed hub with reversing drum brake
  • Carbon steel frame and fork
  • Adjustable seat: forwards/backwards
  • Adjustable back height/ Fold over back upholstery
  • Adjustable crank height
  • Chain tension idler
  • Adjustable height/angle footrest system
  • 155 mm crankset w/one chain ring
  • Oval Ergonomic handpedals
  • 9° camber
  • Reflectors
  • Turning Radius – 10 feet for 360° circle, 7 feet w/one backing maneuver
  • Static Tip Angle - 30° for 150 lb subject
  • Parking brake
  • Cushion, 20" spoked performance wheels with cruiser tires

Specifications

Product Specifications

Weight Capacity 250 lbs.
Product Weight 45 lbs.
Seat Width 14"
Seat Depth 14"
Seat-to-Floor Height 17.5"
Overall Length 56"
Front Wheel Size 20"
Rear Wheel Size 20"
Axle Type Quick Release
Back Height 11" - 14"
Upholstery Type Nylon
Upholstery Color Black
Warranty on Frame Three Year Limited
Warranty on Wearable Parts One Year Limited
Shipping Weight 70 lbs.
Box Length 77"
Box Width 27"
Box Height 23"
Weight
  • 40 lbs.
  • Frame
  • 1 3/4″ x .065 ovalized carbon steel tubing
  • Footrest
  • Adjustable height and angle, dual footrests w/safety straps
  • Gears
  • 3 Speeds (low, normal, high)
  • Shift Levers
  • Shimano light action, 3-speed click shifting
  • Hub
  • Shimano 7-speed hub w/internal hub brake
  • Crankset
  • Sugino 150mm w/chainring, adjustable height, also includes chain tension idler
  • Brake
  • Internal brake actuated by back pedaling
  • Parking Brake
  • Caliper brake w/locking brake lever
  • Handles
  • Foam covered horizontal handles are easier for young users to operate
  • Foam covered vertical ergonomic handles offer good hand position for older children
  • Rims
  • 20″ Tioga wheels front & rear
  • Wheelbase
  • Overall length 56″
  • Turning Radius
  • 10 feet for 360-degree circle, 7 feet w/one backing maneuver
  • Warranty Three year warranty on frame. One year limited warranty on parts.
