Hoyer Journey Stand-Up Lift

  • 42586
  • Hoyer

Availability: Leaves USA Warehouse In: 2-3 days

Customize & Buy

Customize & Buy


CAD $5,431.00
As low as /mo
Check my rate


Quick Overview

  • Adjustable kneepad
  • Compatible with many patient sizes

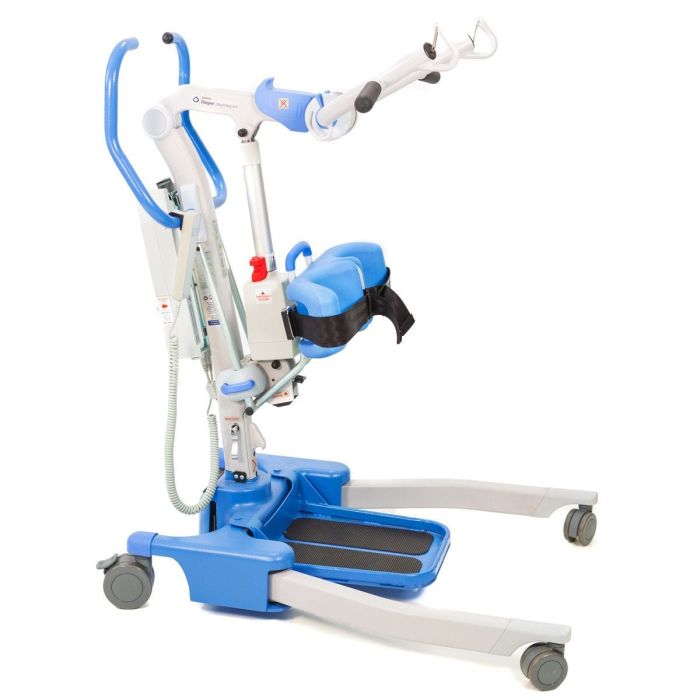

The new Journey lift is an ultra-compact, portable folding standaid with best-in-class functionality. It's compact and lightweight, allowing caregivers to maneuver in tight spaces while folding for easy storage or tansportation. The first on the market adjustable cow-horn mechanism supports a range of patient heights and sizes, allowing your facility to have one lift that meets the needs of many. The careful attention to product design ensures that both the caregiver's and the resident's needs have been met.


  • Unique folding design allows the Journey to stand unaided
  • Adjustable cow-horn mechanism supports a range of patient sizes
  • Adjustable kneepad
  • Bump guard protects against base plates and paint finishes
  • 24V DC rechargeable sealed battery
  • Free Shipping


Product Specifications

Weight Capacity341 lbs.
Product Weight88.6 lbs.
Lifts Patient From FloorNo
Max Lifting Range60.2"
Min Lifting Range28.4"
Base Width (Open)38.2"
Base Width (Closed)27"
Base Length39.4"
Base Height4.3"
Sling TypeStanding
Front Wheel Size 3"
Rear Wheel Size4"
Warranty on Frame Two Year Limited
Shipping Weight99 lbs.
Box Length31"
Box Width41"
Box Height22"
Total weight88.6 lbs.
Power pack6.2 lbs.
Mast, base, and boom assembly82.4 lbs.
Base assembly (w/out battery)30.2 lbs.
Mast and boom (w/out battery)42.3 lbs.
Foot tray9.9 lbs.
Weight capacity341 lbs.
Max. overall length39.4″
Min. overall length36.8″
Max. overall height63″
Min. overall height44.5″
Max. height to attachment point60.2″
Min. height to attachment point28.4″
Turning radius45.1″
Outside width (legs open)38.2″
Inside width (legs open)34.5″
Outside width (legs closed)27″
Inside width (legs closed)22.2″
Widest point (between support handles)18.8″
Overall height of legs4.3″
Ground clearance3″
Front twin casters3″
Rear braked casters4″
WarrantyLimited 2 Year Warranty
