Hoyer Elevate Stand-Up Lift

  • 42781
  • HOY-ELEVATE-S
  • Hoyer

Availability: Leaves USA Warehouse In: 2-3 days

Customize & Buy

Customize & Buy

Please select another option
Total:
As low as CAD $8,952.00
-
+
Back

Details

Quick Overview

  • One hand adjustable knee-pad
  • Safety belt included

Description

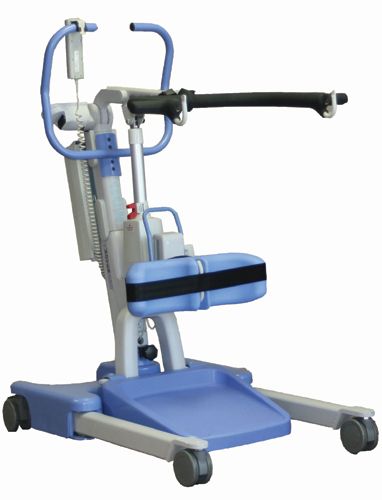

The Elevate is an active lift designed to improve the lifting experience for both the caregiver and the patient. It is compact and sturdy with a 440 lbs. weight capacity. The Elevate features an optional weigh scale. The weigh scale is seamlessly integrated with a digital display and user friendly contols.

The one hand adjustable kneepad can be adjusted to an infinite number of settings within the operating range while the patient is positioned in the sling. For added safety, an included safety belt can be used to secure one leg, two legs together, or two legs independently while transferring a patient.

For patients needing gait training, the foot tray is angled and removable, allowing caregivers to provide gait training while using the lift.

Features

  • Compact and sturdy
  • Optional weigh scale
  • Kneepad is infinitely adjustable within operating range
  • Safety belt
  • Angled foot tray with removable polymer cover
  • Can be used for gait-training
  • 24vDC rechargeable sealed battery
  • Free Shipping

Specifications

Product Specifications

Weight Capacity 440 lbs.
Product Weight 136.4 lbs.
Lifts Patient From Floor No
Max Lifting Range 64.7"
Min Lifting Range 39.2"
Base Width (Open) 39.1"
Base Width (Closed) 34.3"
Base Length 43.3"
Base Height 4.7"
Sling Type Standing
Front Wheel Size 4"
Rear Wheel Size 4"
Warranty on Frame Two Year Limited
Shipping Weight 177 lbs.
Box Length 32"
Box Width 44.5"
Box Height 44.3"
Weight 136.4 lbs.
Mast, base and boom assembly 127.3 lbs.
Power pack 6.6 lbs.
Base assembly (w/out battery) 40.7 lbs.
Mast and boom (w/out battery) 66 lbs.
Foot tray 23.1 lbs.
Max. overall length 43.3″
Min. overall length 41″
Max. overall height 65.5″
Min. overall height 48.4″
Max. height to attachment point 64.7″
Min. height to attachment point 39.2″
Turning radius 48.2″
Outside width (legs open) 39.1″
Inside width (legs open) 34.3″
Outside width (legs closed) 24.8″
Inside width (legs closed) 20″
Widest point (between support handles) 29″
Overall height of legs 4.7″
Ground clearance 1.4″
Front twin casters 4″
Rear braked casters 4″
Warranty Limited 2 Year Warranty

Returns

Return Policy

Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call 1800wheelchair Customer Service.

After 30 business days, Patient lifts are no longer returnable for hygienic safety and per FDA regulations. Slings, even if unused, are non-returnable.

Once accepted, the following conditions apply:

  • This item has a 30% Restocking Fee.
  • You are responsible for the cost of return shipping and the product must be in the original packaging.
  • The item must be in new condition; unused. Indications of use include, but are not limited to Dirty wheels, scratches on frame, scratches to the remote (if applicable).
  • All accessories and chargers included in the patient lift’s box must be returned.
  • Items canceled after the product has already shipped will be considered a return.
  • Unfortunately, delivery service fees, including Next-Day and Overnight shipping fees, Inside Delivery, White Glove Delivery, and Tech Set-Up are not refundable.

See our full return policy here.
