EZ-Access Trifold Advantage Series Wheelchair Ramp

  • 35415
  • Ez-Access
  • SUITCASE TFAS05
4.80 star rating 6 reviews

Availability: Leaves USA Warehouse in 1-2 days

Leaves USA Warehouse in 1-2 days

FREE shipping

Chat live with a product specialist

Customize and buy

Total:
As low as CAD $669.00
-
+
Back

Details

Description

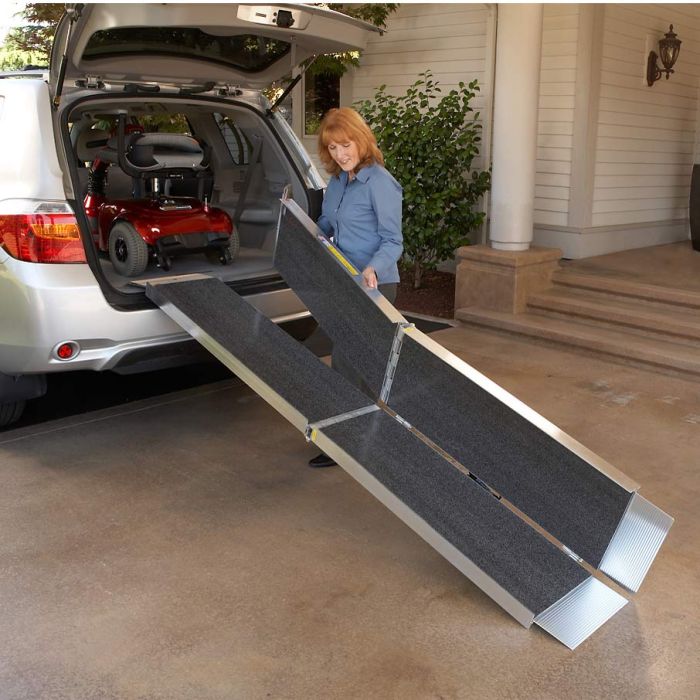

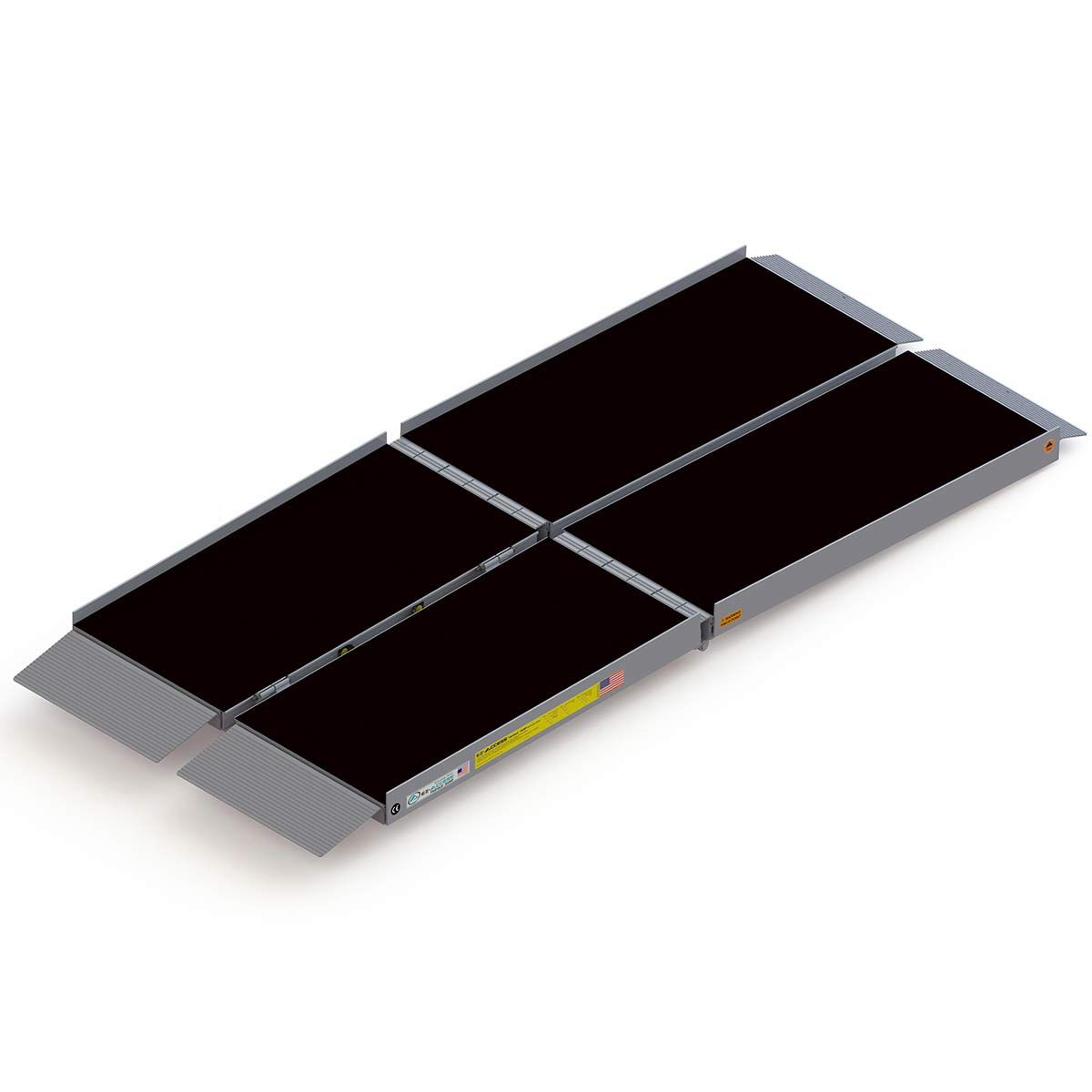

The Trifold Advantage Series ramp, with its unique 3-fold design, offers the length required for wheelchairs and scooters to easily access steps, vehicles, and raised landings. The ramp is designed to be used and carried as a set, or if desired, can be quickly separated into two individual sections, making it even easier to use, carry, and store. By simply removing two hinge pins, the Trifold Advantage Series ramp quickly separates into two lightweight halves, each with their own carrying handle. The durable, patent-pending hinge with interlocking brackets provides smoother operation and reduced pinch points. Ramp features high-quality skid-resistant tape with yellow safety strips and a self-adjusting bottom transition plate for easy conversion from ramp to ground. Unfolds to a 29” wide platform. Manufactured of welded aircraft-grade aluminum. 800 lbs. weight capacity.


Usable Length 5 ft. 6 ft. 7 ft. 8 ft. 10 ft.
Usable Width 2'45" 2'45" 2'45" 2'45" 2'45"
Folded Length 30.75" 36.75" 42.75" 48.75" 60.75"
Folded Width 15" 15" 15" 15" 15"
Folded Height 11.5" 11.5" 11.5" 11.5" 11.5"
Weight (2 sections) 16 lbs. each 19 lbs. each 22 lbs. each 25 lbs. each 30 lbs. each
Weight Capacity 800 lbs. 800 lbs. 800 lbs. 800 lbs. 800 lbs.
Curbs 1-2 steps, some minivans 1-3 steps, some minivans & some SUVs 1-3 steps, some minivans & SUVs 2-3 steps, some minivans & SUVs 2-4 steps, some minivans & SUVs

Features

  • Ramp stands upright on reinforced hinges
  • Bottom transition plate “floats” to self-adjust, resulting in a smoothe transition from ramp to ground and provides more flexibility at different ramp angles
  • Ramp can be separated into two lightweight sections by removal of pins
  • Unique folding design features dual handles with slim profile
  • Available in 5’, 6’, 7’, 8’ & 10’ lengths
  • Made of aluminum
  • Patent-pending pinch-free hinge
  • Designed for scooters and wheelchairs
  • Non-slip driving surface
  • Optional Top Lip Extension (TLE) allows for rear door access on utility trailers, SUVs, and vans
  • Made in the U.S.
  • Free Shipping

Specifications

Product Specifications

Weight Capacity 800 lbs.
Product Weight 32 lbs. - 60 lbs.
Ramp Type Folding
Ramp length 5' - 10'
Ramp Width 2'4"
Warranty Lifetime Limited
10- Rise Accommodates 20″
Weight Capacity: 800 lbs.
Warranty: Three (5) Year Limited Warranty
Ramp weight 32 lbs.
6- Shipping weight 50 lbs.
Usable size 60″ x 29.5″
Folded size 30.75″ x 15″ x 11.5″
Rise Accomidates 10″
6- Ramp weight 38 lbs.
6- Usable size 72″ x 29.5″
6- Folded size 36.75″ x 15″ x 11.5″
6- Rise Accommodates 12″
7- Ramp weight 44 lbs.
7- Shipping weight 55 lbs.
7- Usable size 84″ x 29.5″
7- Folded size 42.75″ x 15″ x 11.5″
7- Rise Accommodates 14″
8- Ramp weight 50 lbs.
8- Shipping weight 61 lbs.
8- Usable size 96″ x 29.5″
8- Folded size 48.75″ x 15″ x 11.5″
8- Rise Accommodates 16″
10- Ramp weight 60 lbs.
10- Shipping weight 72 lbs.
10- Usable size 120″ x 29.5″
10- Folded size 60.75″ x 15″ x 11.5″

Returns

Return Policy

Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call 1800wheelchair Customer Service at 1-800-320-7140.

Once accepted, the following conditions apply:

  • All returns must be in original packaging and submitted within 60 days.
  • 15% handling and restocking fee will be deducted.
  • You are responsible for the cost of return shipping
  • The item must be in new condition; unused.
  • All accessories and chargers included in the box must be returned.
  • Items canceled after the product has already shipped will be considered a return.
  • Unfortunately, delivery service fees, including Next-Day and Overnight shipping fees, Inside Delivery, White Glove Delivery, and Tech Set-Up are not refundable.
